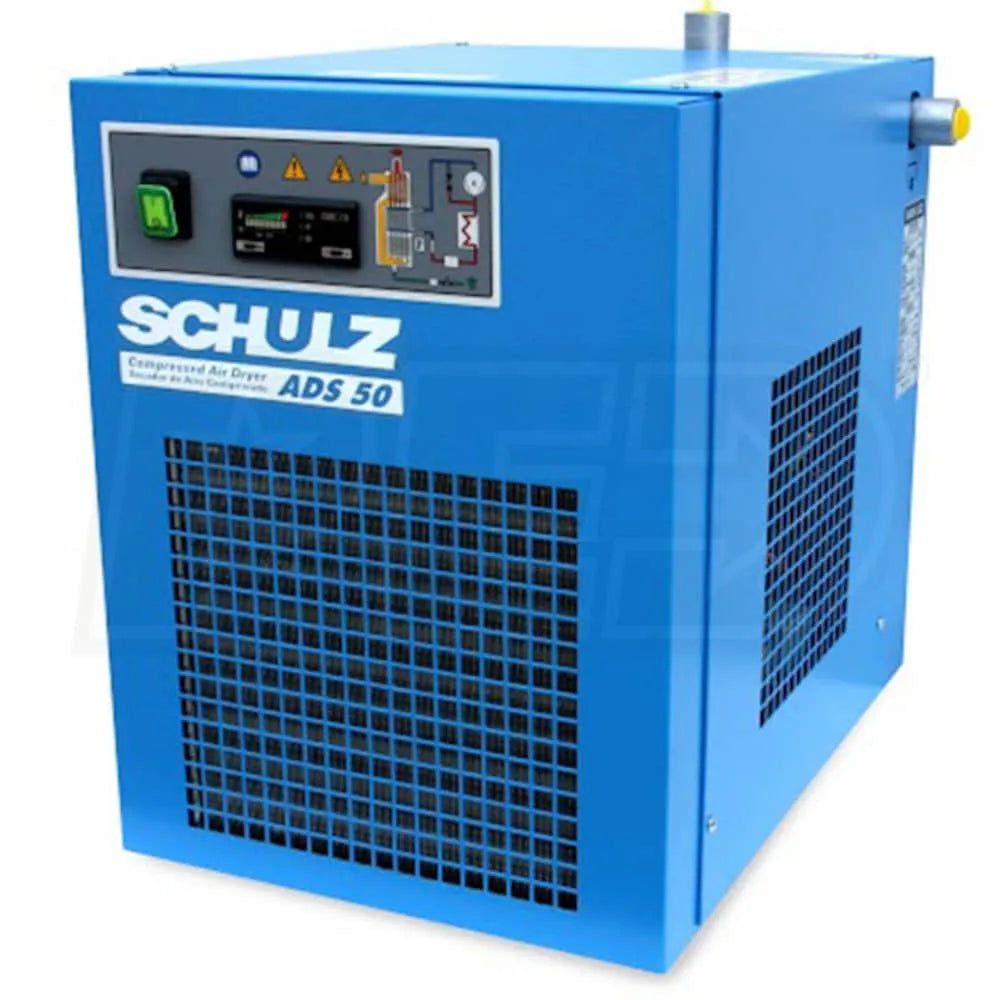

Schulz ADS-50-UP Non-cycling Compressed Air Dryer, Blue; Electronic Controller; 115V; 232 PSI Max Inlet Pressure; Single Phase Circuit; 50 CFM

Schulz ADS-50-UP Non-cycling Compressed Air Dryer, Blue; Electronic Controller; 115V; 232 PSI Max Inlet Pressure; Single Phase Circuit; 50 CFM
Schulz non-cycling compressed air dryers have been developed for applications with inlet and room temperatures up to 100 °F. Removable panels facilitate easy and quick access to internal components
Key Features:
- 232 PSI maximum
- Digitally shows temperature
- Controls the drain valve through a timer
- Controls the condenser fan through a probe
- Single phase
Specifications:
- Flow (CFM): 50
- Rated Pressure (PSI): 175
- Maximum Pressure (PSI): 232
- Connection (in): 1/2" NPT-F
- Voltage (V): 115
- Frequency (Hz): 60 Hz
- Phase: Single
- Overall Dimensions (HxWxL): 19 x 15 x 19 inches
- Weight: 70 pounds
Technical Details
Brand
‎Schulz
Voltage
‎115 Volts
Recommended Uses For Product
‎Drilling, Air Brushing, Spraying, Nailing
Power Source
‎Corded Electric
Noise Level
‎65 dB
Special Feature
‎High-efficiency
Included Components
‎Dryer
Item Weight
‎70 Pounds
Color
‎Blue
Air Flow Capacity
‎65 Cubic Feet Per Minute
Model Name
‎ADS-50-UP
Product Dimensions
‎18.69"L x 18.69"W x 14.56"H
Manufacturer
‎Schulz
Part Number
‎ADS-50-UP
Item Weight
‎70 pounds
Item model number
‎ADS-50-UP
Is Discontinued By Manufacturer
‎No
Special Features
‎High-efficiency
Batteries Included?
‎No
Batteries Required?
‎No
