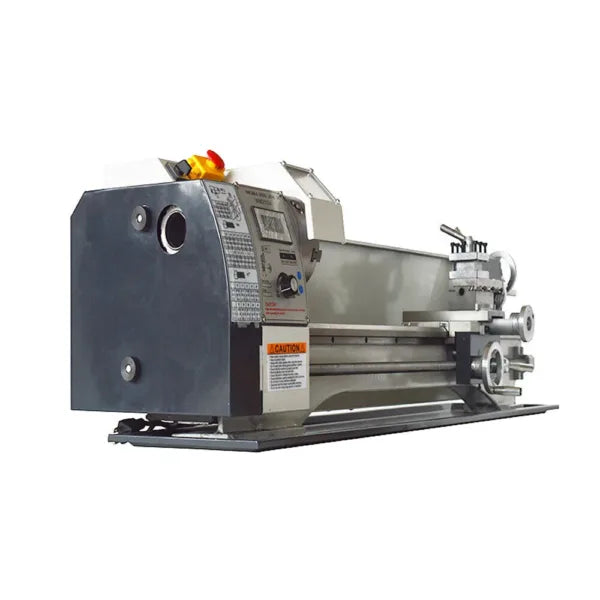

Inch Thread Metal Lathe 8X23" Bench Lathe 1100W Brushless Motor Turning Machine

Product Overview
Miniature lathe is mainly used for  processing the end face of various rotary surfaces and rotating  bodies.For example, turning inside and outside cylindrical surface, cone  surface, ring groove and forming turning surface, turning end face and  all kinds of commonly used metric thread, cone surface, ring groove and  forming turning surface, turning end face and all kinds of commonly used  metric thread.
Product Parameters
Motor:
110V brushless motor
Voltage:
AC110V 50/60Hz
Power:
1100W
Length of center:
23.6"(600mm)
Swing Over Bed:
8.3"(210mm)
Rotary diameter of tool  rest:
5.51"(140mm)
Spindle bore:
1.50"(38mm)
Diameter of chuck:
4.92"(125mm)
Width of lathe bed:
3.94"(100mm)
Number of Spindle  Speeds:
Infinitely variable  speeds
Spindle taper:
MT5
Knife rest labour:
Horizontal four-station
Spindle rotation speed:
50-2500rpm
Range of Inch  Threads(optional accessory ):
10-44T.P.I
Precision of the  spindle:
0.01mm
Automatic feed range:
0.1mm-0.2mm
Maximum stroke of tool  rest plate:
2.16"(55mm)
Maximum stroke of  middle plate:
2.95"(75mm)
Maximum stroke of  bottom plate:
19.7"(500mm)
Maximum stroke of  tailstock sleeve:
2.36"(60mm)
Tail frame taper:
MT2
Lathe sizes:
38.2"*11.8"*13.4"(97*30*34cm)
Package size:
43.7"*19.3"*17.7"(111*49*45cm)
Gross weight:
165lb(75kg)
- High quality cast iron bed after  high frequency quenching process and precision grinding
- The spindle rotation speed is divided into two levels in the range of  50-2500rpm, which can be adjusted continuously
- Brushless motor has strong power, low noise and saves energy  consumption
- High precision spindle, high quality bearing, high accuracy, wear  resistance, long life
- With one button start and stop switch and forward and reverse switch
