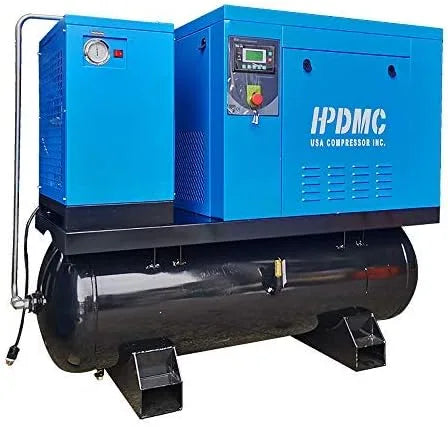

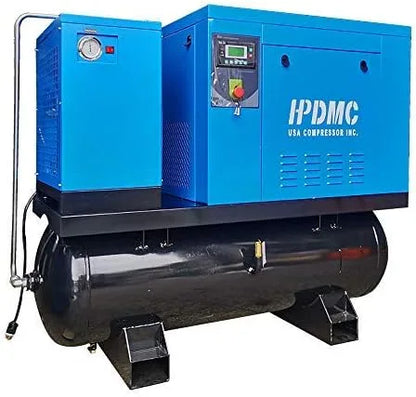

HPDMC ASME Rotary Screw Air Compressor With Tank & Refrigerated Dryer

HPDMC 10-HP 80-Gallon Rotary Screw Compressor w/ Dryer Power : 10HP Max Working Pressure : 150 PSI Air Flow : 39 CFM Oil Type : Oil Lubricated Oil System : Splash Lubricated Position of Oil Separator : Spin-on Tank Size：80 Gallons ASME tank Tank Orientation：Horizontal Input Voltage : 230 V / 460V Phase : 3-Phase Dimension (L*W*H) : 77*36*61 inches Package Weight : 900 lbs HPDMC Rotary Screw Air Compressors with quiet and compact design, can be install almost anywhere, can meet the compressed air demands of a tire shop maintenance shop,vehicle body shop,paint shop or automotive dealership. 【Parameters】Power : 10HP；Input Voltage: 460-480/60Hz/3ph；Air Flow : 39cfm；Max Working Pressure : 125 psi / 8 bar；Motor : 3600rpm；All-in-one Compressor With Air Dryer & ASME 80 Gallon Tank. 【Simple Installation】A small footprint and lower noise levels mean increased installation flexibility, making the HPDMC air compressor ideal for most applications. And, with the optional receiver tank and integrated dryer, you will save valuable floor space and lower your cost of operation. 【Easy For Maintenance】All components are easily accessible for fast easy maintenance. Annual maintenance operations only include changing the filters and oil at predetermined intervals. Oil and Separator filters are spin-on style. Inexpensive parts and oil combine with long operating intervals to deliver significant savings over the life of the machine. 【Meet Your Needs】 This 10 HP rotary screw air compressor offers many features, including a PLC that will allow for easy and intuitive scheduling and operation. Paired with HPDMC local customer service,we are confident this air compressor will meet your compressed air needs for years to come.
