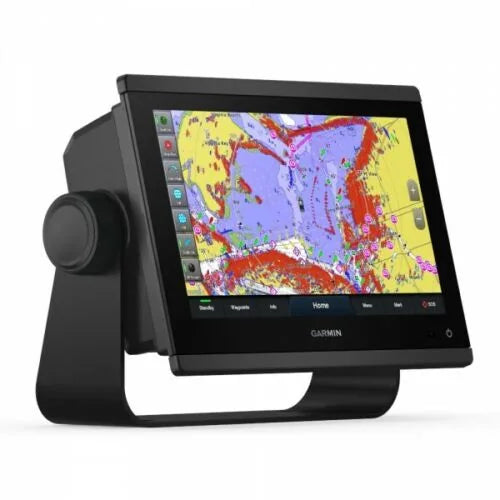

Garmin GPSMAP 943xsv 9 Marine GPS Chartplotter Device

What’s Included In The Box? The Garmin GPSMAP 943xsv ships with the following items included: GPSMAP 943xsv chartplotter microSD™ card preinstalled Power cable NMEA 2000® T-connector NMEA 2000 drop cable (2 meters) 8-pin transducer to 12-pin sounder adapter cable Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation Features General PHYSICAL DIMENSIONS: 9.2 x 6.4 x 3 (23.3 x 16.2 x 7.6 cm) DISPLAY SIZE: 7.8 x 4.4; 9.0 diagonal (19.9 x 11.2 cm; 22.9 cm diagonal) DISPLAY RESOLUTION: 1280 x 720 pixels DISPLAY TYPE: WXGA display WEIGHT: 3.6 lbs (1.6 kg) WATER RATING: IPX7 POLARIZED SUPPORT: POWER CONSUMPTION: Max power usage at 10 Vdc: 22 W Typical current draw at 12 Vdc: 1.3 A Max current draw at 12 Vdc: 1.8 A ANTENNA: Internal or external over NMEA 2000 MOUNTING OPTIONS: Bail, flush or flat RECEIVER: 10 Hz high-sensitivity GARMIN MARINE NETWORK™ PORTS: 1 TRANSMIT POWER: 1 kW traditional; 1 kW CHIRP Maps & Memory PRELOADED MAPS: BlueChart® g3 (coastal maps) and LakeVü g3 (inland maps) ACCEPTS DATA CARDS: 2 microSD™ cards (back of unit) WAYPOINTS: 5000 TRACK LOG: 50,000 points; 50 saved tracks ROUTES: 100 Outdoor Recreation TIDE TABLES: Yes Chartplotter Features GARMIN RADAR COMPATIBLE: Yes GARMIN SONAR COMPATIBLE: Yes (with external black box, sold separately) GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS): Yes SUPPORTS AIS (TRACKS TARGET SHIPS POSITION): Yes SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO): Yes SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS: Yes GSD™ BLACK BOX SONAR SUPPORT: Yes GCV™ BLACK BOX SONAR SUPPORT: Yes ACTIVECAPTAIN COMPATIBLE: Yes GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE: Yes WIRELESS REMOTE COMPATIBLE: Yes SAILING FEATURES: Yes Sonar Features & Specifications DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE: Yes DUAL-BEAM (77/200 KHZ) SONAR CAPABLE: Yes FREQUENCIES SUPPORTED: Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (dependent on transducer) CHIRP SONAR TECHNOLOGY: Yes (Built-in) CLEARVÜ: Yes with CHIRP (built-in) SIDEVÜ: Yes with CHIRP (built-in) MAXIMUM DEPTH: 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP): Yes WATER TEMPERATURE LOG AND GRAPH: Yes SONAR RECORDING: Yes SONAR HISTORY REWIND: Yes Connections NMEA 2000® COMPATIBLE: Yes TRANSDUCER PIN NUMBERS: 12-pin (orange) NMEA 0183 INPUT PORTS: 1 (Differential) NMEA 0183 OUTPUT PORTS: 1 (Differential) VIDEO INPUT PORTS: 1 BNC WIRELESS CONNECTIVITY: Yes J1939 COMPATIBLE: Yes
