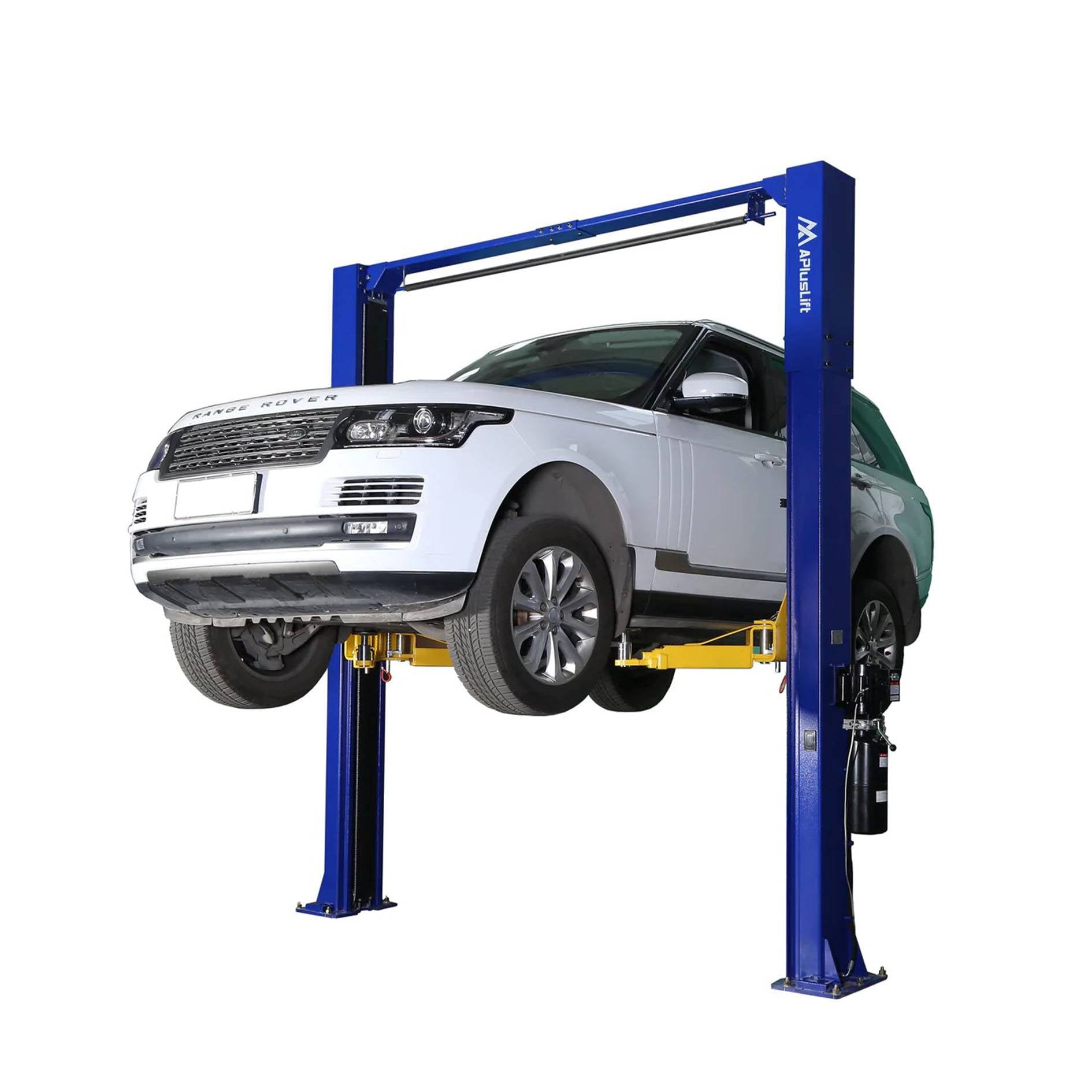

APlusLift HW-10KOH-A 10,000 LB 2-Post Over Head Heavy Duty Car Lift

PRODUCT DESCRIPTION :
APlusLift HW-10KBP-A car lift (auto hoist) is one of the most affordable floor plate car lifts built with quality materials and good workmanship. The lift has a strong double “S” column design to support 10,000 LB capacity. It is upgraded with thicker steel for stronger support (Column Steel upgraded to 13/64 from 11/64; Carriage and Arm Steel upgraded to 15/64 from 3/16; Carriage yoke upgraded to 9/16 from 15/64)
Specification and Features :
Installation Manual
Column Steel Thickness: 13/64
Carriage Steel Thickness: 15/64
Carriage Yoke Thickness: 9/16
Arm Steel Thickness: 15/64
Base Plate Steel Thickness: 5/8
Combo (Symmetrical and Asymmetrical) Arm Assembly
Straight Front/Rear 3 Stage reach from 22 7/8 to 42 5/8
Straight Rear 2 Stage reach from 33 5/8 to 52 7/8
Screw-in pads 4 pieces included
Truck adapters 4 pieces included
Double point safety lock release
Automatic arm lock restraints
Relief valve built in power pump to prevent overloading
Door guards protection rubber
Up-limit switch to protect cylinders working stroke used in safe length scope
Heavy duty 3/8 diameter cable and 5 pulley that reduce high stress on synchronization process and increase cable life
Upgraded Floor Plate, Beveled Diamond Plate Steel 5/32 with Supporting Bracket.
Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
Concrete Requirement: 6 thick at 3500 psi reinforced with fiberglass or steel (4 thick for vehicles 9000LB and below)
Anchor bolts/mounting hardware included
Tool trays and toe guards included
Shipping Weight: 1,350 LB
Shipping package size: 113L x 22W x 40H
