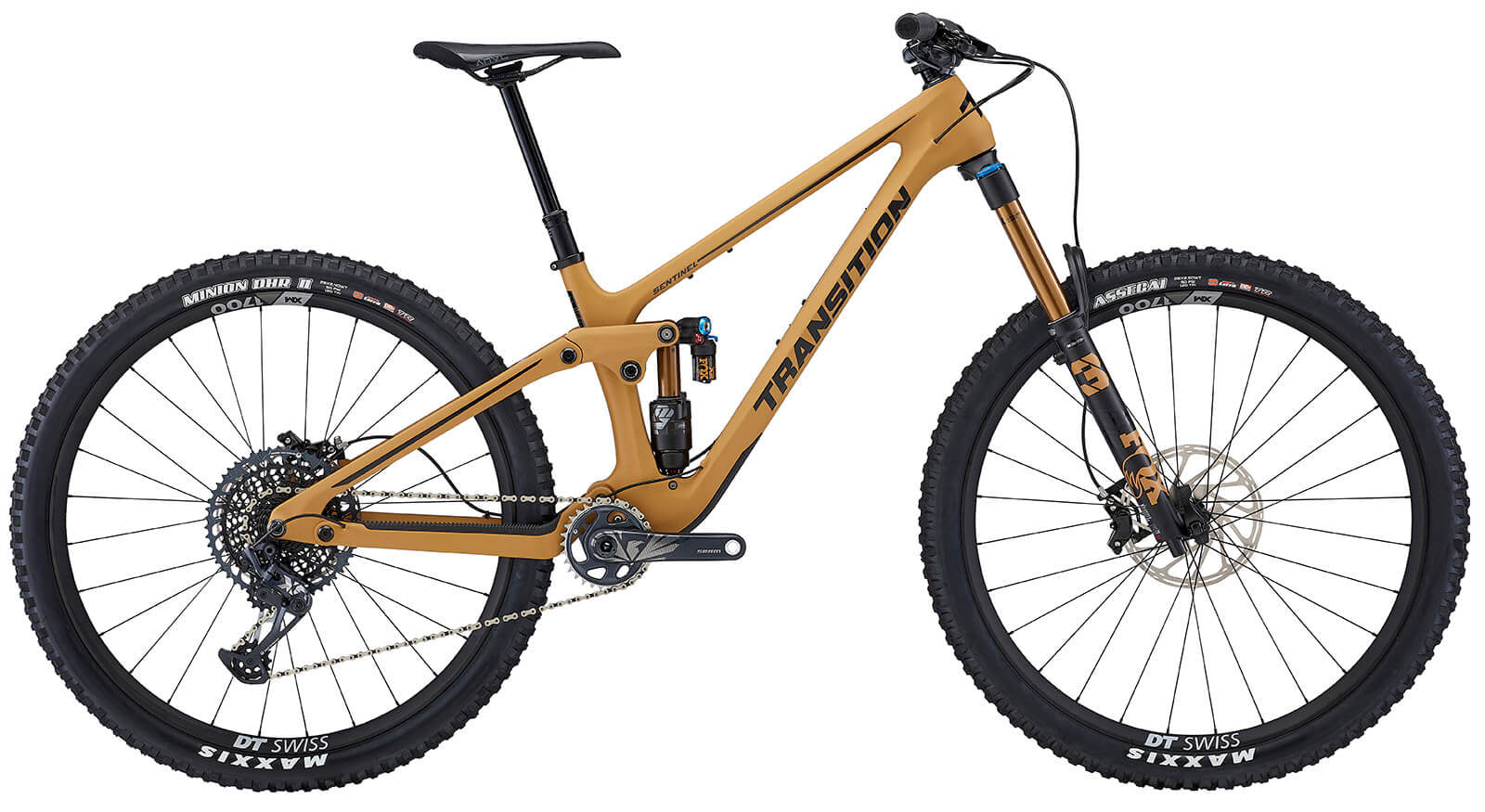

2022 Transition Sentinel Carbon X01 Loam Gold L

Wheel Size 29"

Frame Material Carbon Fiber

Frame Material Details Full Toray EPS-molded carbon main frame, rear triangle, and rocker link; molded down tube and chainstay protection

Rear Travel 150mm

Rear Shock FOX FLOAT X2 Factory, 2-position lever, trunnion mount, 205mm x 62.5mm

Fork FOX FLOAT 36 Factory, GRIP2 damper, 44mm offset

Fork Travel 160mm

Head Tube Diameter Tapered, 1.125" top, 1.5" bottom

Headset Cane Creek 40 Series, ZS44 upper, ZS56 lower

Handlebar OneUp Carbon, 800mm width, 35mm clamp diameter

Rise: 20mm (SM/MD), 35mm (LG/XL/XXL)

Stem ANVL Swage, 40mm length, 35mm bar clamp

Grips Sensus Lite

Brakes SRAM Code RSC, 4-piston, SRAM CenterLine 200mm rotors

Brake Levers SRAM Code RSC

Drivetrain 1x

Shifters SRAM X01 Eagle, 12-speed

Front Derailleur None

Rear Derailleur SRAM X01 Eagle, 12-speed

ISCG Tabs ISCG05

Chainguide None

Cranks SRAM X1 Eagle Carbon DUB, 170mm length

Chainrings SRAM X1 Eagle, 30 tooth

Bottom Bracket SRAM DUB, 73mm BSA threaded

Pedals None

Chain SRAM GX Eagle, 12-speed

Cassette SRAM X01 Eagle XG-1295, 12-speed, 10-52 tooth

Rims DT Swiss XM 1700 Spline 30

Hubs DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear with XD driver

Spokes DT Swiss Competition

Tires Front: Maxxis Assegai, 3C, EXO+, 29" x 2.5"

Rear: Maxxis Minion DHR II, 3C, EXO+, 29" x 2.4"

Saddle ANVL Forge Ti

Seatpost OneUp Dropper

Drop: 150mm (SM), 180mm (MD), 210mm (LG/XL/XXL)

Seatpost Diameter 31.6mm

Seatpost Clamp Single bolt, 37mm

Rear Dropout / Hub Dimensions 148x12mm Boost

Max. Tire Size 29" x 2.6"

Bottle Cage Mounts One inside front triangle, plus accessory mounts under top tube

Colors Ti Grey, Loam Gold

Warranty Lifetime frame

Weight 30 lb 11.7 oz (13,940 g)

Miscellaneous - GiddyUp rear suspension design

- Includes tubeless valves and Stan's NoTubes sealant

- Internal derailleur and dropper seatpost routing; external brake hose routing

- Weight given for size MD

- Rear travel can be reduced to 140mm with a shorter-stroke 205mm x 57.5mm shock
