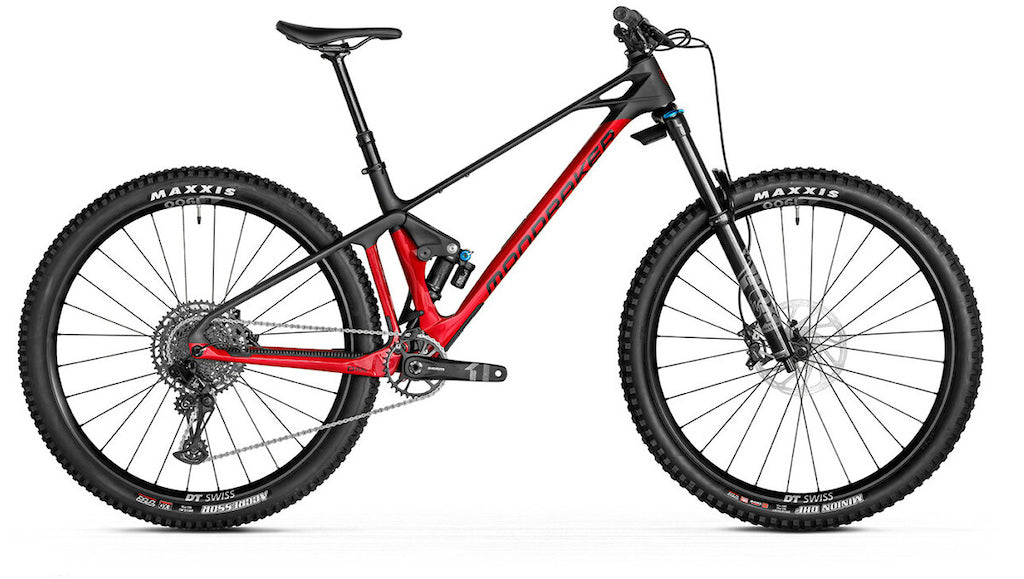

2022 Mondraker Foxy Carbon R

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry,aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mmBSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealedbearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry Kit

REAR SHOCK Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

SHOCK SETTINGS Light compression, extralight rebound, air volume spacer 0.6

FORK Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

HEADSET Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

STEM Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

HANDLEBAR Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS Onoff Diamond, 1lock-on, 135mm

SEATPOST Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm

SADDLE SDG BEL-AIR 3.0, LPU foam, steel rails

FRONT BRAKE Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

REAR BRAKE Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

BRAKE LEVER Sram G2 R, tool-free reach adjust

RIMS DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes

SPOKES DT Champion, straightpull

FRONT HUB DT 370, Boost 15x110mm, IS 6 bolts

REAR HUB DT 370, Boost 12x148mm, 18T Ratched LN system, IS 6 bolts

FRONT TIRE Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

REAR TIRE Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

CRANKSET Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

RINGS 32T, steel, X-Sync 2

BOTTOM BRACKET Sram DUB BSA, sealed bearings, 73mm

CHAIN Sram NX Eagle, 12s, Powerlock

REAR DERAILLEUR NX Eagle, 12s, X-Actuation 1:1

SHIFT LEVERS Sram Trigger NX Eagle, 12s, X-Actuation 1:1

CASSETTE Sram XG-1230, 11-50T, 12s

DERAILLEUR HANGER Sram UDH
